Leaf Spring Heat Treatment Manual Production Line

Name: Leaf Spring Heat Treatment Manual Production Line
Brand: Xiaocheng
Price: 1 USD

China Leaf Spring Heat Treatment Manual Production Line wholesale

Brand Name : Xiaocheng

Place of Origin : CHINA

Certification : CE

Contact Now

Leaf Spring Heat Treatment:
The leaf spring heat treatment process is a series of processes of heating, keeping warm and cooling the steel plate, the purpose of which is to improve the physical and chemical properties of the steel, making it have higher strength and toughness to meet the requirements of the spring in use.

Leaf Spring Length	450~2000mm
Single Beam Swing Plate Production	450~700mm
Dual Beam Swing Plate Production	700~2000mm
Leaf Spring Width	50~120mm
Leaf Spring Thickness	6~40mm
Workpiece Weight	2~30kg
Leaf Spring Arc Height	0~300mm
Quenching Furnace Dimension	L9200W1800H600mm
Furnace Working Temperature	900~1100℃
Stepping Beam Adopts Double Beam Structure	Centre Distance 700mm
Max. Feeding Distance per Step	240mm
Max. Lifting Height	80mm
Furnace Inlet and Discharge Opening Height	300mm
Stepping Mechanism Operation Cycle can be set	12s
Spring Length of Quenching Machine	≤2000mm
Maximum Clamping Force	＞40KN
Clamping Cylinder Stroke	350mm
Maximum Opening Height of Upper and Lower Clamps	450mm
Workpiece Arc Height	≤300mm
Top Tooth Heigh	185mm
Quenching Swing Cooling Time Digital Adjustment	0-400s
Maximum Swing Speed	22times/min
Tempering Furnace Dimension	L14000*W1600mm
Gas Type	Natural Gas Calorific Value>8000Kcal/Nm³
Maximum Working Temperature	650℃
Instrument Temperature Control Accuracy	±5℃
Production Capacity	3t/h

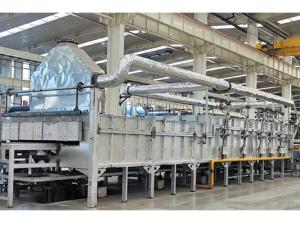

Leaf Spring Heat Treatment Manual Production Line Images
